Menu Bar & Database Information

Menu Bar Controls

• Refresh — Update node, edge, and property information.

• Close Session — Disconnect the current database session.

Database Summary Buttons

When connected to a database, buttons summarizing nodes, edges, and properties appear:

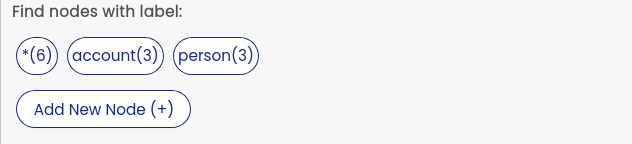

• Node Labels
  List of all node labels with counts (e.g., Person (12)).
  * means all nodes.

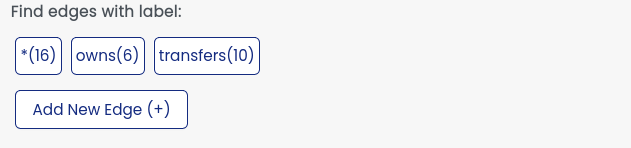

• Edge Labels
  List of all edge labels with counts. Edges shown in rectangular boxes.

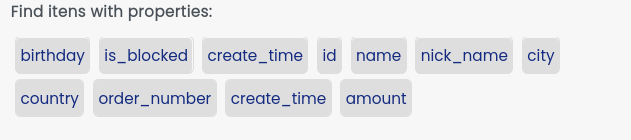

• Properties
  List of all properties in the database, shown as grey rectangles.



Clicking any button automatically generates a query in the Query Editor:

• Node Label Query:

MATCH (v) WHERE LABEL(v) = 'label_name' RETURN v

• Edge Label Query:

MATCH (v)-[r]->(v2) WHERE LABEL(r) = 'label_name' RETURN v

• Node Property Query:

MATCH (v) WHERE v.property IS NOT NULL RETURN v

• Edge Property Query:

MATCH (v)-[r]->(v2) WHERE r.property IS NOT NULL RETURN v
