Connection Interface

When AGViewer starts, the initial screen presents a Server Connection Panel that allows users to connect to a database.

Server Connection Panel Components

The following fields must be filled in to establish a connection:

• Connect URL – The hostname or IP address of the server

• Connect Port – The port number used for PostgreSQL (default: 5432)

• Database Name – The name of the PostgreSQL database

• Graph Path – The name of the graph within the connected database

• Username – The database username

• Password – The password for the above user

Note: If AGViewer is running inside docker and AgensGraph server is running on your host machine or difference container, the URL to connect to should be host.docker.internal or target machine IP instead of localhost.

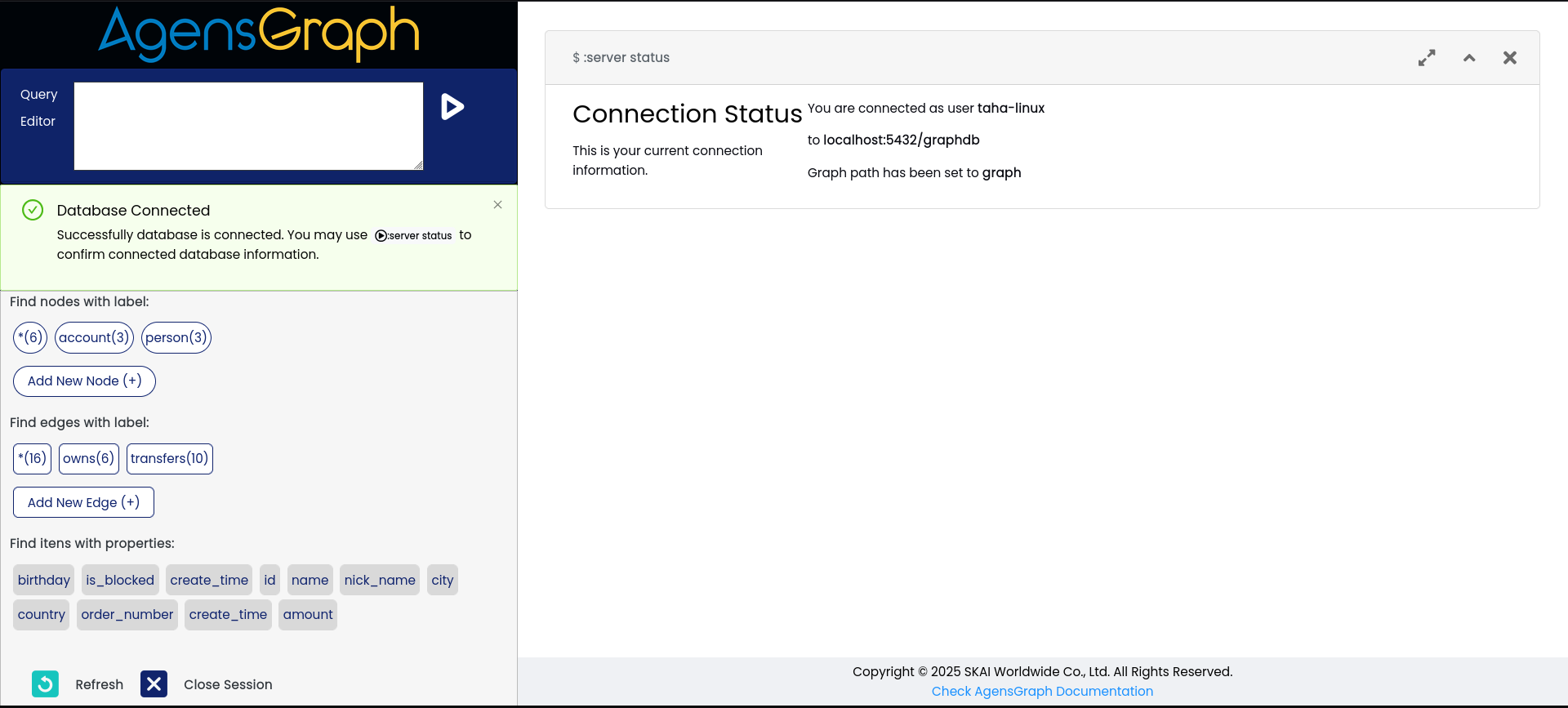

Connection Feedback

Once the connection is successfully established, a status message is displayed in the Server Status Panel to confirm the database connection.
